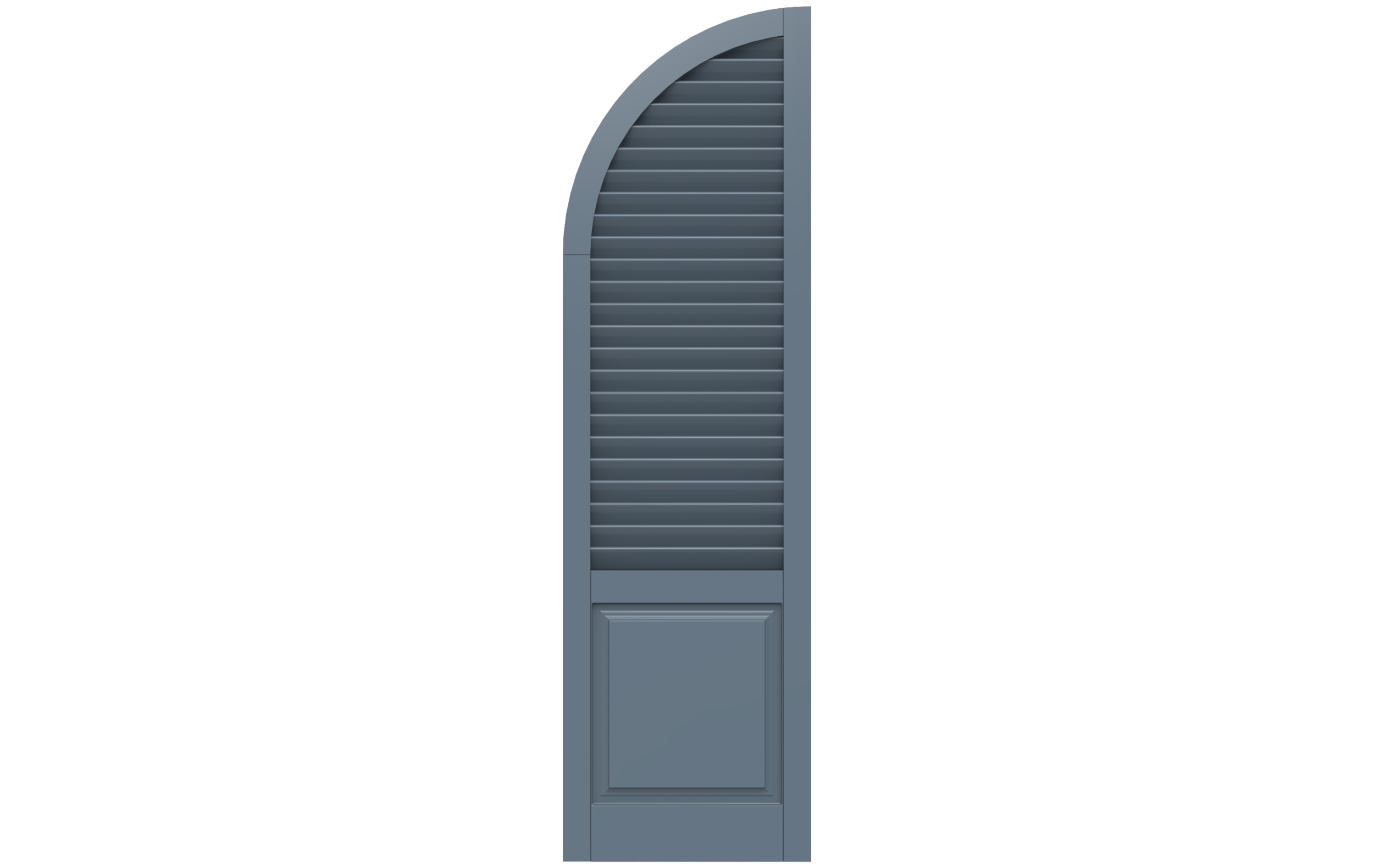

Deep South Arch Top French Quarter
Thickness: 1 ¾"
Standard Stile Width: 2"
Standard Louver Angle: 36°
Standard Louver Size: 2"
Panel Configuration: Louver 70%; Raised Panel 30%
Deep South Arch Top French Quarter with Extra Rail
Thickness: 1 ¾"
Standard Stile Width: 2"
Standard Louver Angle: 36°
Standard Louver Size: 2"
Spring Line Rail Height: 2 ¼"
Panel Configuration: Louver 20%; Louver 40%; Raised Panel 40%

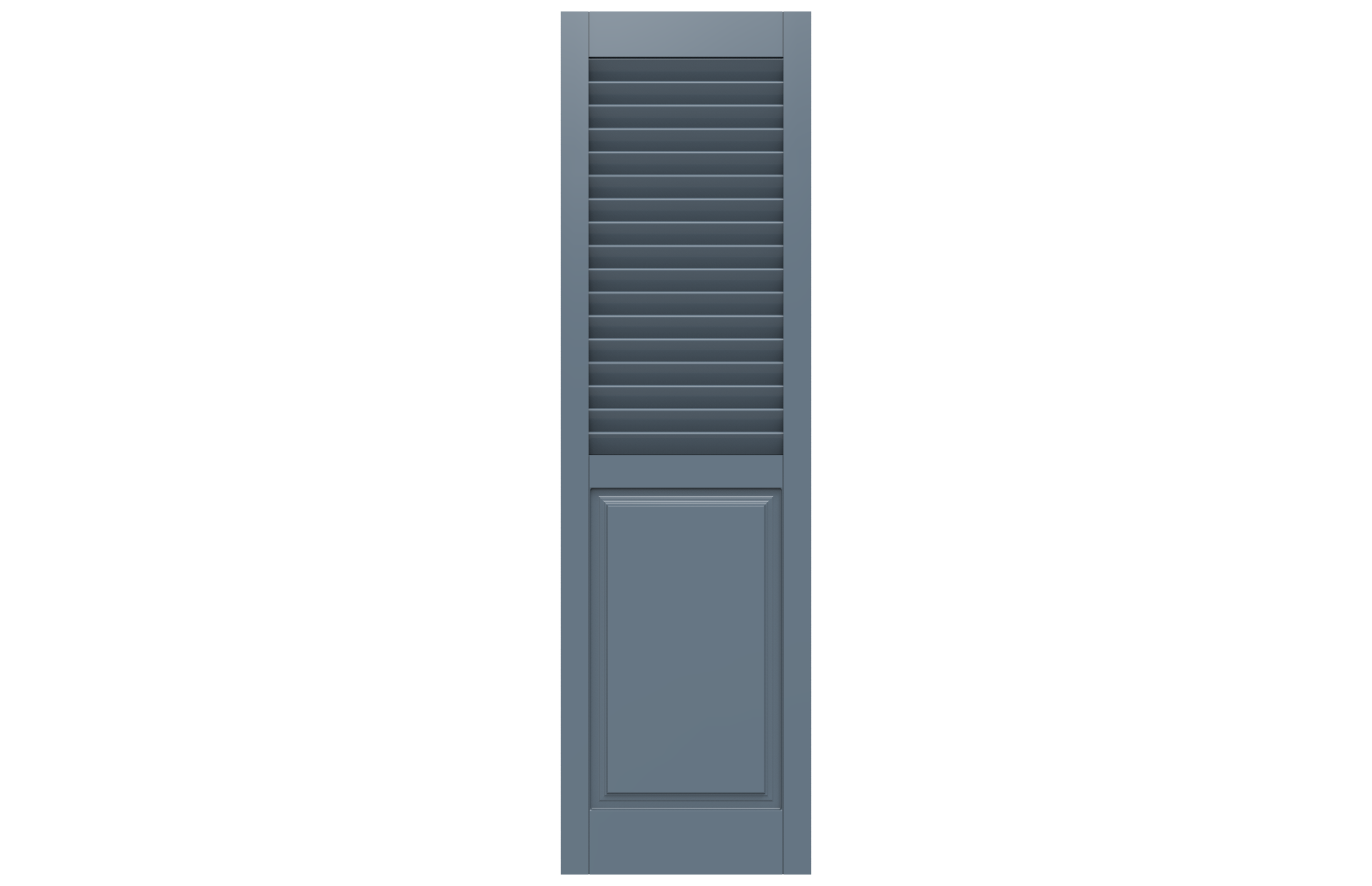

Deep South French Quarter
Thickness: 1 ¾"
Standard Stile Width: 2"
Standard Louver Angle: 36°
Standard Louver Size: 2"
Panel Configuration: Louver 50%; Raised Panel 50%

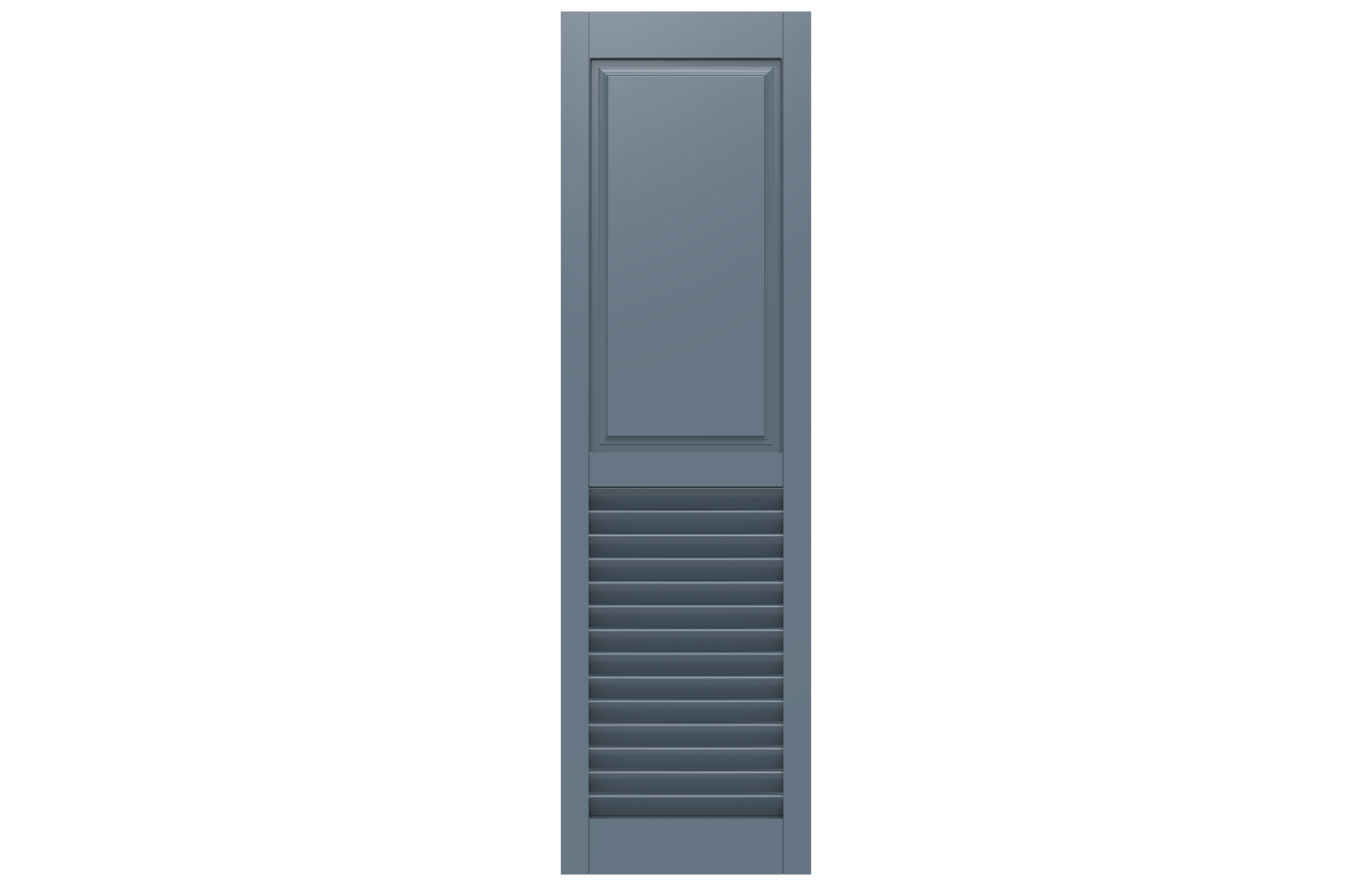

Deep South European
Thickness: 1 ¾"
Standard Stile Width: 2"
Standard Louver Angle: 36°
Standard Louver Size: 2"
Panel Configuration: Raised Panel 50%; Louver 50%
Deep South European with Decorative Tilt Rod option
Thickness: 1 ¾"
Standard Stile Width: 2"
Standard Louver Angle: 36°
Standard Louver Size: 2"
Panel Configuration: Raised Panel 50%; Louver 50%
Deep South Combination with Raised Panel & Louver (20-40-40)
Thickness: 1 ¾"
Standard Stile Width: 2"
Standard Louver Angle: 36°
Standard Louver Size: 2"
Panel Configuration: Raised Panel 20%; Louver 40%; Raised Panel 40%
Deep South Combination with Louver & Framed Board (30-35-35)
Thickness: 1 ¾"
Standard Stile Width: 2"
Standard Board Width: ⅓ of Panel Width
Standard Louver Angle: 36°
Standard Louver Size: 2"
Panel Configuration: Louver 30%; Framed Board 70%
